Vertical Anchorage Line System on Rigid Aluminium Rail

Key Features

  • Continuous ladder with fall protection
  • Can be fitted over various structures using different types of brackets and fasteners
  • Corrosion free anodized aluminium rail
  • CED coated(black)
  • The line consists of the trolley which has an inbuilt shock absorption feature
  • Locking jibs at either end for unintentional release of trolley from the rail
  • Trolley can negotiate the bends easily
  • The rail comes with an extension arm that curves at the ladder end over the working platform for safe access
SKU: Vertex PN9000 Categories: , , , Tags: , , , , , ,
  • Steel ladder rungs (black) over which the vertical anchorage rail made of anodized aluminium is fixed.

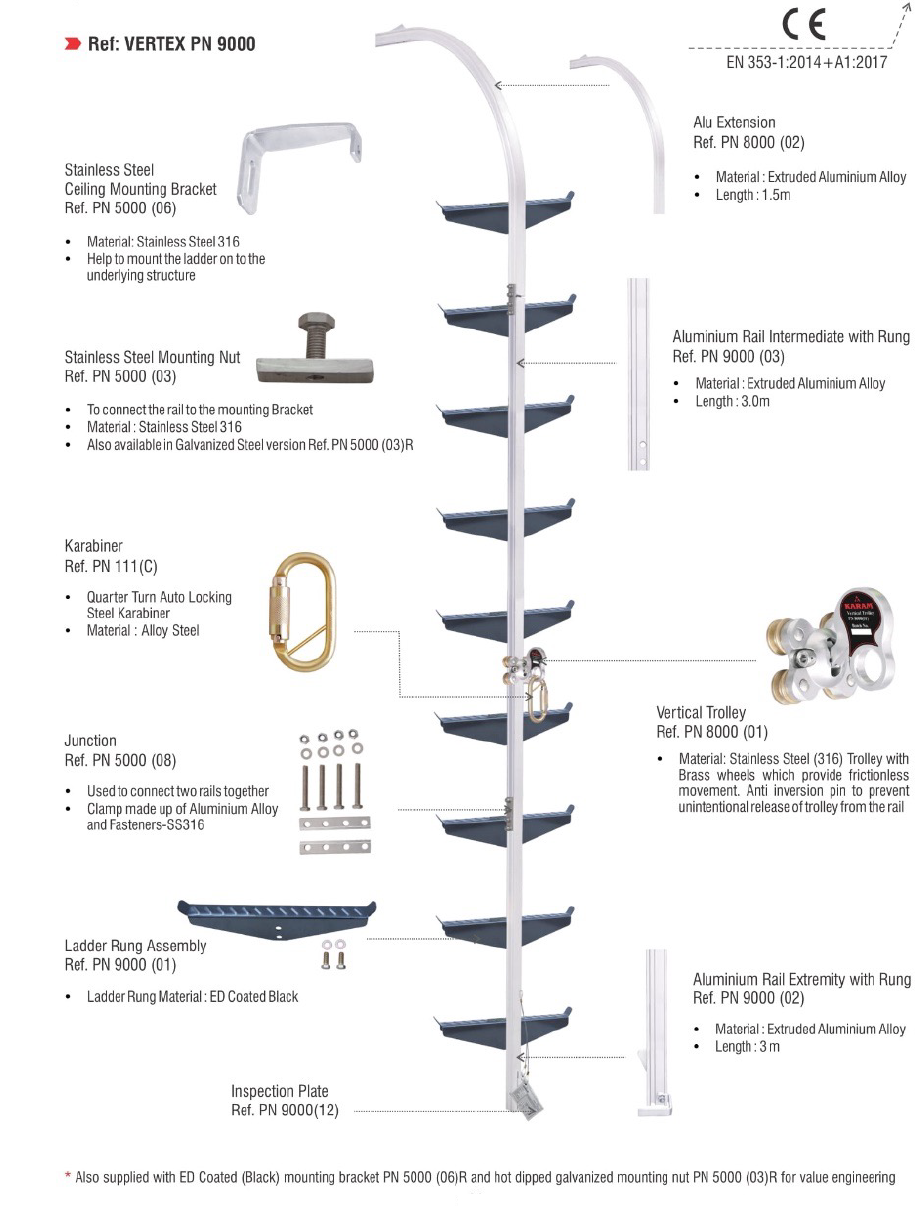

Components
VERTEX-PN-9000---Vertical-Anchorage-Line-System-on-Rigid-Aluminium-Rail_1
Karabiner

PN111(C)

  • Quarter turn auto locking steel karabiner
  • Material: Alloy steel
Aluminium Rail Intermediate

PN5000(03)

  • To connect the rail to the mounting bracket
  • Material: Stainless steel 316
  • Also available in galvanized steel version PN5000(06)R
Stainless Steel Ceiling Mounting Bracket

PN5000(06)

  • Material: Stainless steel 316
  • Helps to mount the ladder on to the underlying structure
Extendable Bracket

PN9000(13) PN9000(13)(EC)

  • PN9000(13): Stainless steel 316
  • PN9000(13)(EC): Alloy steel
  • Helps to mount the ladder on to the underlying structure
Junction

PN5000(08)

  • Used to connect two rails together
  • Clamp made up of aluminium alloy and fasteners-SS 316
PN-8000(01)-Vertical Trolley
Vertical Trolley

PN8000(01)

  • Material: Stainless steel (316) trolley with brass wheels which provide frictionless movement. Anti inversion pin to prevent unintentional release of trolley from the rail
Alu Extension

PN8000(02)

  • Material: Extruded aluminium alloy
  • Length: 1.5m
Ladder Rung Assembly

PN9000(01)

  • Ladder Rung Material: Aluminium
  • Alloy ED coated
PN-9000(02)---Aluminium-Rail-Extremity-with-Rung
Aluminium Rail Extremity

PN9000(02)

  • Material: Extruded aluminium alloy
  • Length: 3 m
PN-9000(03)---Aluminium-Rail-Intermediate-with-Rung
Aluminium Rail Intermediate

PN9000(03)

  • Material: Extruded aluminium alloy
  • Length: 3.0m
Inspection Plate

PN9000(12)

  • For identification, traceability and maintenance of implementation records
Ideal for use

No Climbing Structures Available
