VERTEX-PN-8000---Vertical-Anchorage-Line-System-on-Rigid-Aluminium-Rail_0
Vertical Anchorage Line System on Rigid Aluminium Rail - Image 2

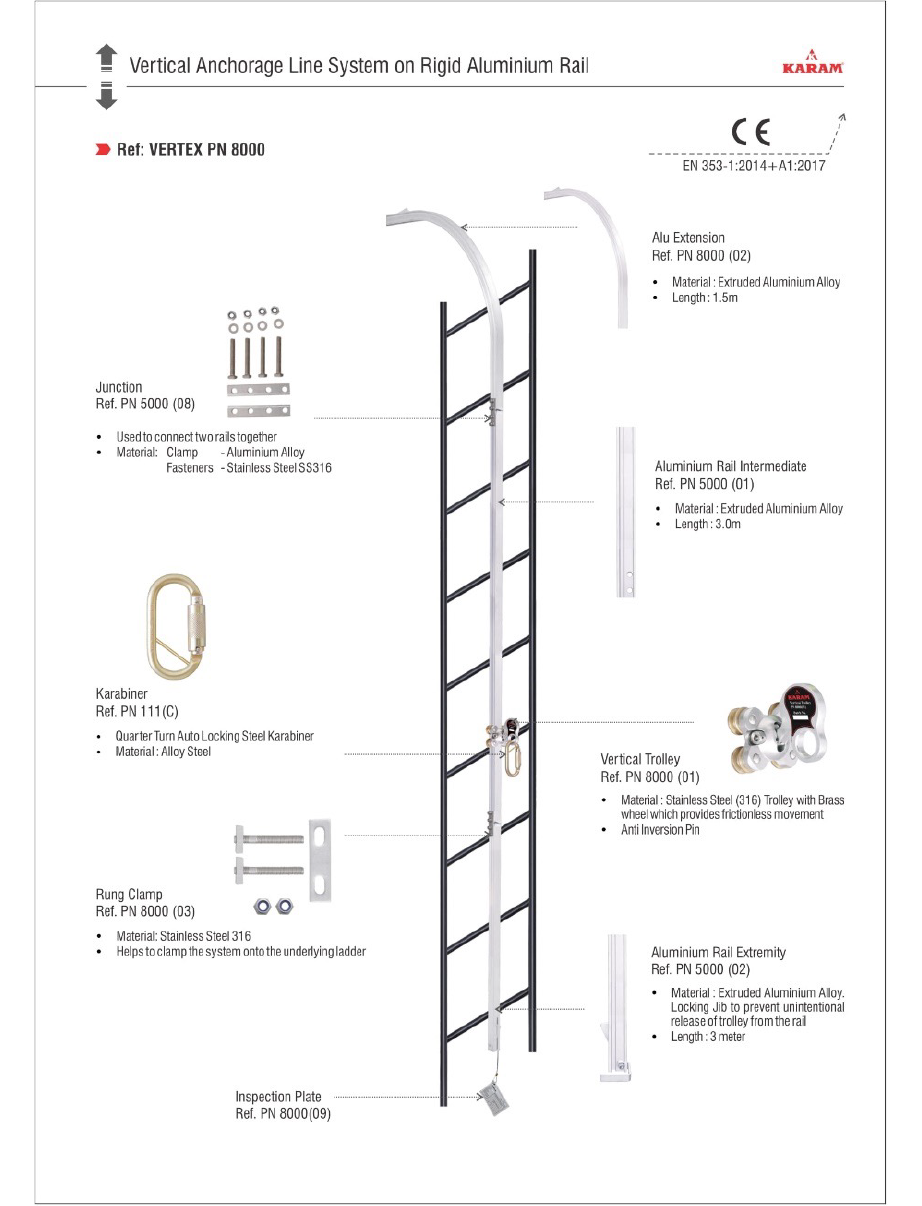

Vertical Anchorage Line System on Rigid Aluminium Rail

Key Features

  • MOC: Aluminium alloy
  • Corrosion free anodized aluminium rail
  • The line consists of the trolley which has an inbuilt shock absorption feature
  • Trolley can negotiate the bends easily
  • Locking jibs at either end for unintentional release of trolley from the rail
  • The rail comes with an extension arm that curves at the ladder end over the working platform for safe access
SKU: Vertex PN8000 Categories: , , , Tags: , , , , , ,
  • PN8000 is an integrated fall arrest solution made of a vertical aluminium alloy guide rail over which glides a guided-type fall arrest trolley.
Components
PN-111(C)---Steel-Quarter-Turn-Locking-Karabiner-with-captive-pin
Karabiner

PN111(C)

  • Quarter turn auto locking steel karabiner
  • Material: Alloy steel
PN-5000(01)---Aluminium-Rail-Intermediate
Aluminium Rail Intermediate

PN5000(01)

  • Material: Extruded aluminium alloy
  • Length: 3.0m
PN-5000(02)---Aluminium-Rail-Extremity
Aluminium Rail Extremity

PN5000(02)

  • Material: Extruded aluminium alloy. Locking jib to prevent unintentional release of trolley from the rail
  • Length: 3.0m
Junction

PN5000(08)

  • Used to connect two rails together
  • Junction material: Aluminium
  • Fasteners material: Stainless steel
Vertical Trolley

PN8000(01)

  • Material: Stainless steel 316
  • Trolley with brass wheel which provides frictionless movement
  • Comes with anti-inversion mechanism
Alu Extension

PN8000(02)

  • Material: Extruded aluminium alloy
  • Length: 1.5m
PN-8000(03)---Rung-Clamp
Rung Clamp

PN8000(03)

  • Material: Stainless steel 316
  • Helps to clamp the system onto the underlying ladder
Inspection Plate

PN8000(09)

  • For identification, traceability and maintenance of implementation records
Ideal for use

Telecom, Construction, Radio and TV Mast, Power Supply and Hydroelectric Installations, Chimney Industries, Turbines
