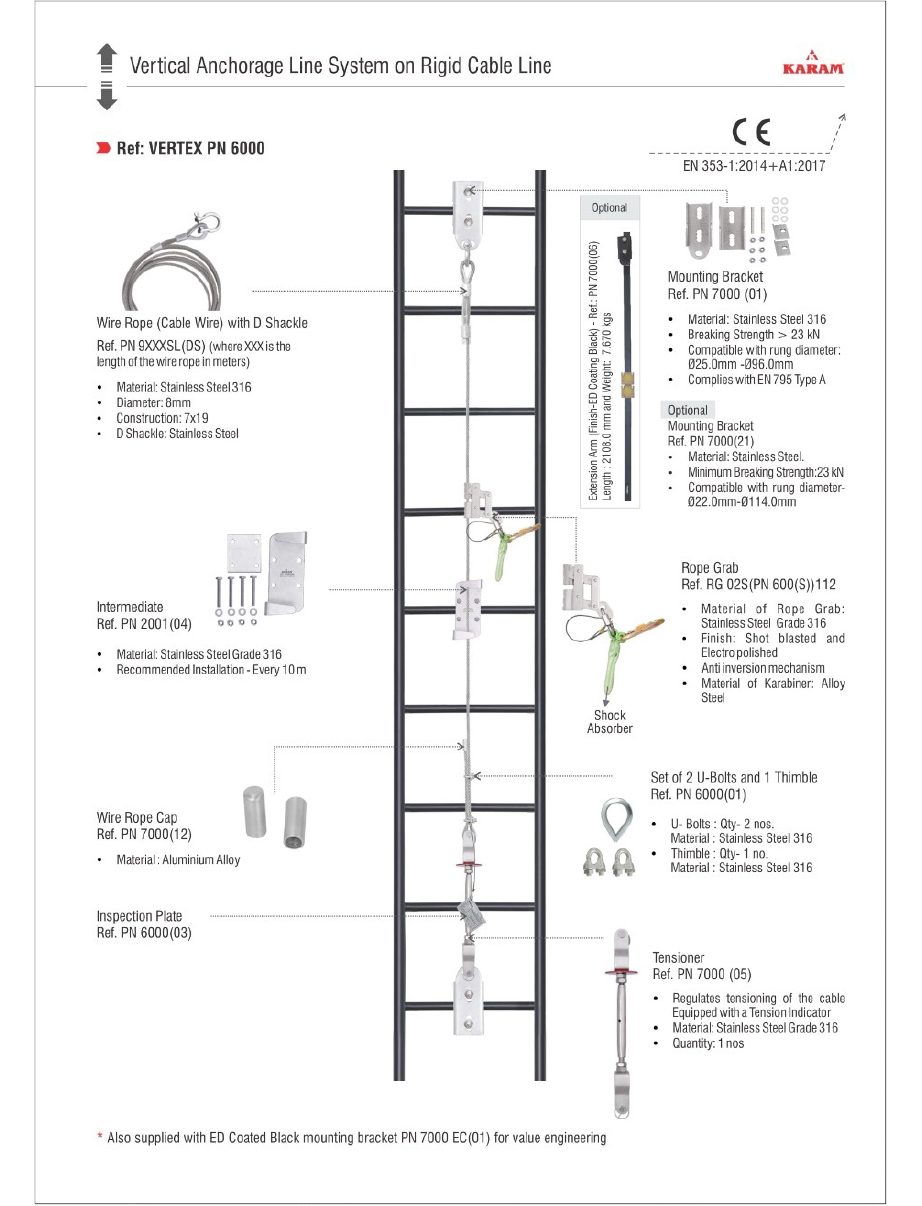

Vertical Anchorage Line System on Rigid Cable Line

Key Features

  • Material of construction: Stainless steel SS 316
  • Installation is simple and easy, requiring minimum effort
  • The rope grab comes with special anti-inversion mechanism which enables it to always be fitted in the correct position
  • Intermediates to reduce vibration and proper alignment of wire rope at every 10m
SKU: Vertex PN6000 Categories: , , , Tags: , , , , , ,
  • PN6000 is an integrated solution to arrest the fall of a user who has to constantly climb up and down a ladder.
Components
Extension_Arm
Extension Arm

PN7000(06)

PN-2001(04)---Intermediate
Intermediate

PN2001(04)

Material: Stainless steel grade 316

Recommended installation-Every 10.0m

Set of 2-U Bolts, 1 Wire Rope Cap and 1 Thimble

PN6000(01)

  • U-Bolts: Qty- 2 nos
  • Material: Stainless steel 316
  • Thimble: Qty- 1 no
  • Wire Rope Cap: Qty- 1 no
  • Material: Stainless steel 316
Wire Crimping Assembly

PN7000(14)

  • Thimble: Qty-1 no
  • Ferrule: Qty-2 nos
  • Aluminium Wire Rope Cap: Qty-1 no
PN-7000(01)--Mounting-Bracket
Mounting Bracket

PN7000(01)

  • Material: Stainless Steel 316
  • Complies with EN 795 Type A
PN-7000(05)---Tensioner
Tensioner

PN7000(05)

  • Regulates tensioning of the cable
  • Equipped with a tension indicator
  • Material: Stainless steel grade 316
  • Quantity: 1 nos
Rope-Grab
Rope Grab

RG02S (PN600(S))112

  • Material of Rope Grab: Stainless steel grade 316
  • Comes with integral energy absorber
  • Anti inversion mechanism
  • Material of Karabiner: Alloy steel
Wire Rope (Cable Wire)

PN9XXXS

  • Material: Stainless steel 316
  • Diameter: 8mm
  • Construction: 7×19
D-shakle-ring
D-Shakle

PN4000MU(02.5)(D)

  • Material stainless steel 316
Inspection-Plate
Inspection Plate

PN6000(03)

  • For identification traceability and maintenance of implementation records
Optional-Mounting-Brackets
Optional: Mounting Brackets

PN7000(13)

  • Material: Stainless steel
Optional: Mounting Brackets

PN7000(13)(EC)

  • Material: Alloy steel with black ED coating
Optional

PN7000(28)

  • Conforms to EN 795 Type A
Ideal for use

Telecom, Construction, Radio and TV Mast, Power Supply and Hydroelectric Installations, Chimney Industries, Turbines
