Horizontal Anchorage Line System on Rigid Aluminium Rail

Key Features

  • Corrosion free anodized aluminium rail
  • Continuous movement with complete fall protection
  • Four-wheel trolley slides on the rail provides restrained fall protection
  • Locking jibs at either end for unintentional release of trolley from the rail
  • Curved aluminium rail for bends and curves
SKU: Horizon PN5000 Categories: , , , Tags: , , , , , ,

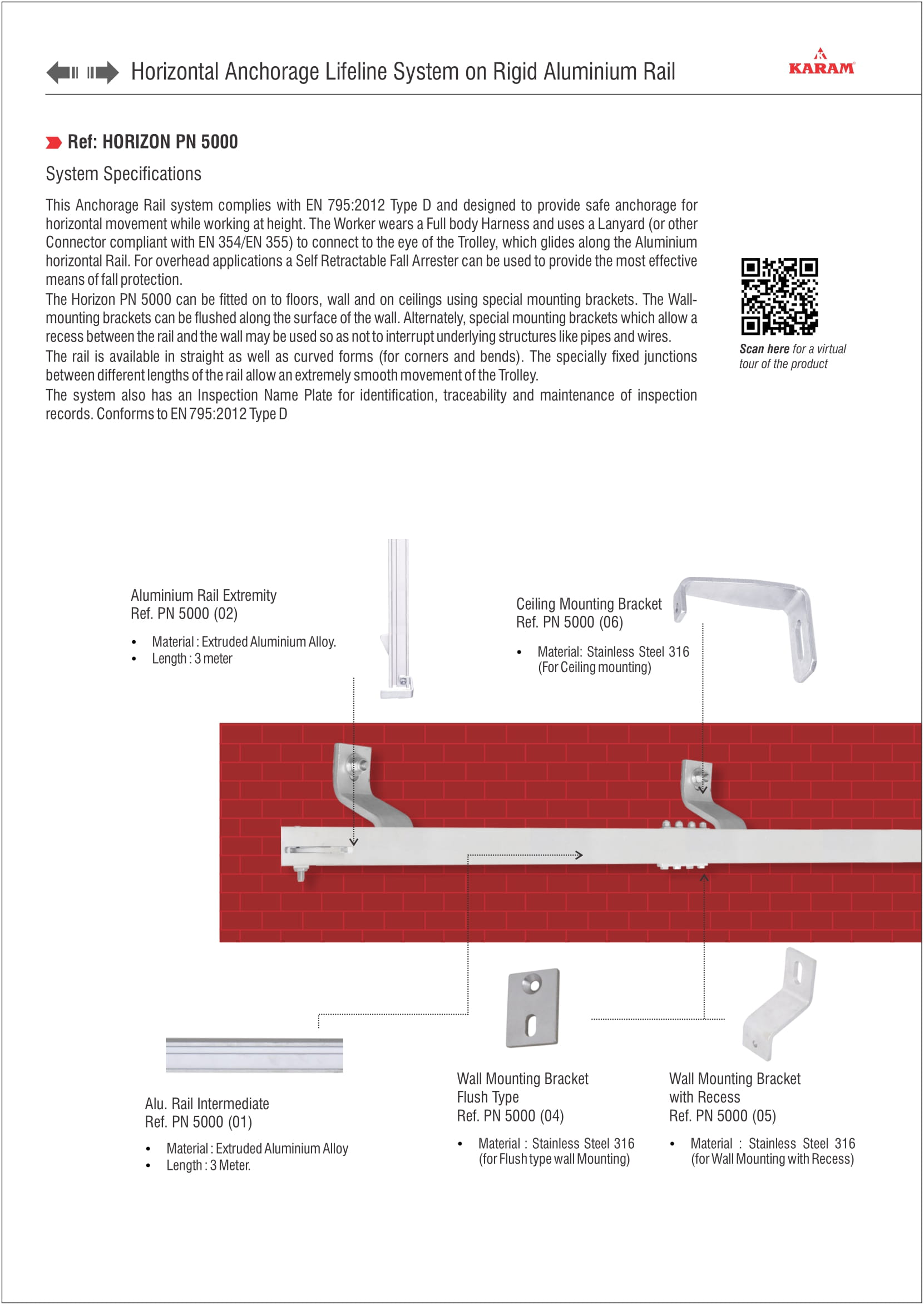

  • This anchorage rail system is designed to provide safe anchorage for horizontal movement while working at height.
Component
PN-5000(01)---Aluminium-Rail-Intermediate_0
Aluminium Rail Intermediate

PN5000(01)

  • Material: Extruded aluminium alloy
  • Length: 3.0m
PN-5000(02)---Aluminium-Rail-Extremity_1
Aluminium Rail Extremity

PN5000(02)

  • Material: Extruded aluminium alloy
  • Length: 3.0m
PN-5000(03)---Stainless-Steel-Mounting-Nut_0
Mounting Nut

PN5000(03)

  • Material: Stainless steel 316 to connect the rail to the mounting
  • Bracket PN5000(04) or PN5000(05)
PN-5000(04)---Wall-Mounting-Bracket-Flush-Type_0
Wall Mounting Bracket Flush Type

PN5000(04)

  • Material: Stainless steel 316 (for flush type wall mounting)
PN-5000(05)---Wall-Mounting-Bracket-with-Recess_0
Wall Mounting Bracket with Recess

PN5000(05)

  • Material: Stainless steel 316 (for wall mounting with recess)
PN-5000(06)--Stainless-Steel-Ceiling-Mounting-Bracket_1
Ceiling Mounting Bracket

PN5000(06)

  • Material: Stainless steel 316 (for ceiling mounting)

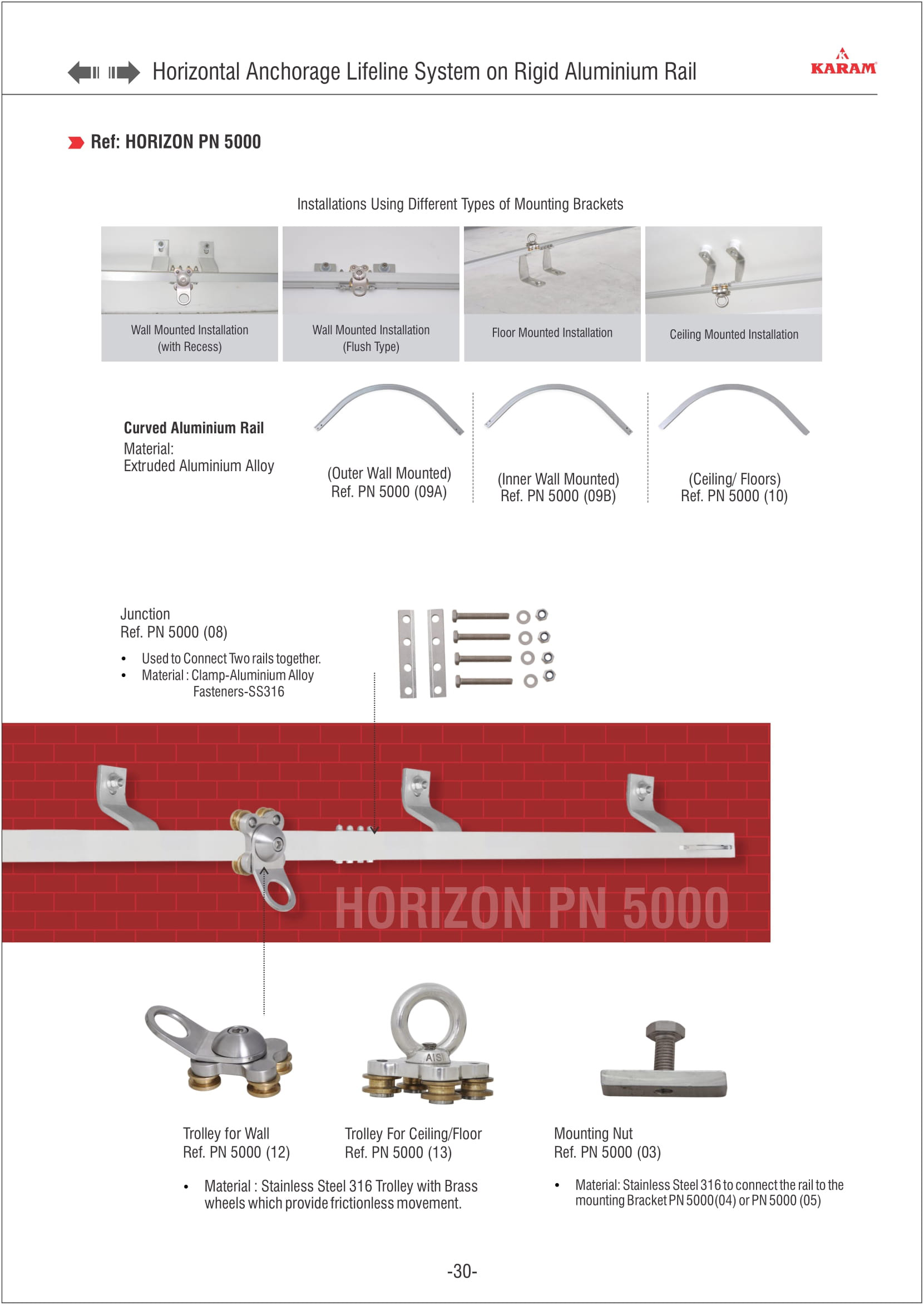

Junction

PN5000(08)

  • Used to Connect Two Rails Together Material: Clamp-aluminium alloy; fastener- SS316
Trolley for Wall

PN5000(12)

  • Material: Stainless steel 316 trolley with brass wheels which provides frictionless movement
PN-5000(13)---Trolley-for-CeilingFloor_0
Trolley for Ceiling/Floor

PN5000(13)

  • Material: Stainless steel 316 trolley with brass wheels which provides frictionless movement
Curved Aluminium Rail Material: Extruded aluminium alloy

PN 5000(09A)

  • Outer wall mounted
PN-5000(09)B--Curved-Aluminium-Rail_0
Curved Aluminium Rail Material: Extruded aluminium alloy

PN5000(09B)

  • Inner wall mounted
PN-5000(10)--Curved-Aluminium-Rail
Curved Aluminium Rail Material: Extruded aluminium alloy

PN5000(10)

  • Ceiling/Floors
Inspection Plate

PN4000(20)

  • For identification, traceability and maintenance of implementation records
Ideal for use

Wall, Floor, Ceiling
