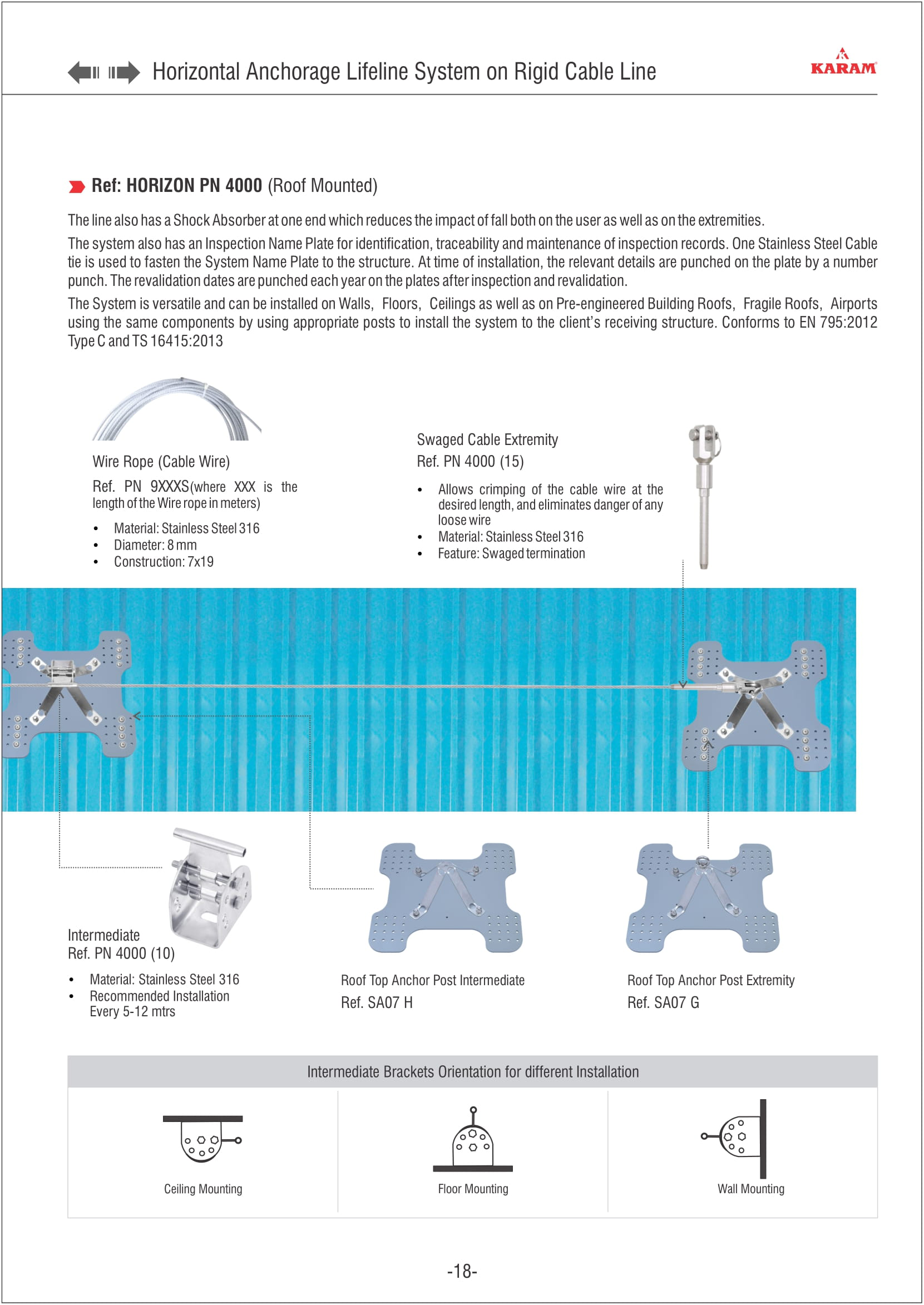

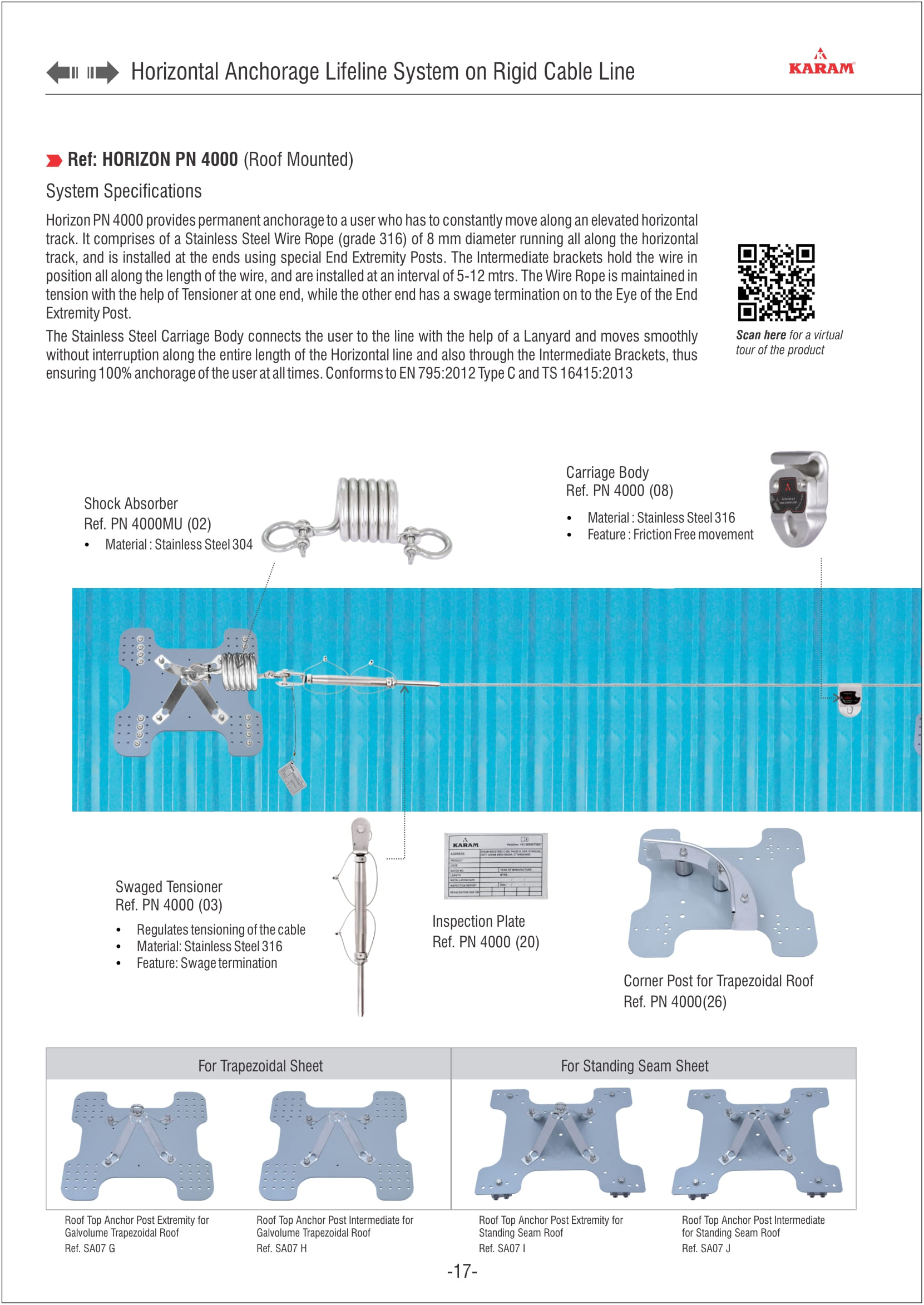

Horizontal Anchorage Lifeline System on Cable Line

Key Features

  • Material of construction: Stainless steel
  • The line has a shock absorber at one end which reduces the impact of fall both on the user as well as on the extremities
  • The shock absorber features a tension indicator and a fall indicator
  • Intermediates are required at every 5.0m to 15.0m for longer lines
  • Carriage body passes through intermediates without disconnection
  • Variety of roof posts available for different types of roof sheet profiles
SKU: Horizon PN4000 (Roof Mounted) Categories: , , , Tags: , , , , , ,
  • Horizon PN4000 (roof mounted) provides permanent anchorage to max. 4 users who have to constantly move along an elevated horizontal track on the roof.
Components
PN-4000-(03)---Swaged-Tensioner
Swaged Tensioner

PN4000(03)

  • Regulates tensioning of the cable
  • Material: Stainless steel 316
  • Feature: Swage termination
PN-4000-(03)-SL---Swageless-tensioner
Swageless tensioner

PN 4000(03)SL

  • Regulates tensioning of the cable
  • Material: Stainless steel 316
  • Feature: Swageless termination
PN-4000-(08)--Carriage-Body
Carriage Body

PN4000(08)

  • Material: Stainless steel 316
  • Feature: Friction free movement
Intermediate

PN4000(10)

  • Material: Stainless steel 316
  • Recommended installation-every 15.0m
Swaged Cable Extremity

PN4000(15)

  • Allows crimping of the cable wire at the desired length, and eliminates danger of any loose wire
  • Material: Stainless steel 31
  • Feature: Swaged termination
Cable Extremity (Swageless)

PN7000(03)

  • Optional
Shock Absorber

PN4000MU(02)

  • Material: Stainless steel
PN-9XXXS-Wire_1
Wire Rope (Cable Wire)

PN9XXXS

  • Material: Stainless steel 316
  • Diameter: 8mm
  • Construction: 7×19
Inspection Plate

PN4000(20)

  • For identification, traceability and maintenance of implementation records
Optional: Intermediate

PN4000(10)N

  • Material: Stainless steel 316
  • Recommended Installation-every 15.0m
Ideal for use

Industrial Sites, No Climbing Structures Available
